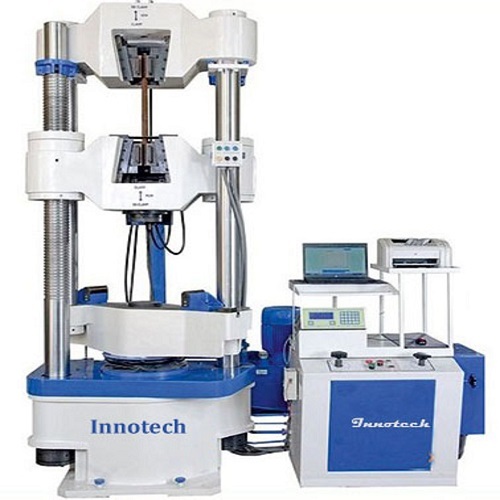

Universal Testing Machine

Product Description

UniversalTesting machine capacity 40 Ton

Specification:-

Connected Load:  2.3KW

Operating Voltage: 400-440VAC, 3 Phase

Ram Stroke: 200mm

Displacement Resolution: 0.1mm

Extension Resolution: 0.1mm

Piston speed at no load: 0-150mm/min

Clearance for Tension test:50-700mm

Clearance for Compressiontest: 0-700mm

Clearance between columns: 500mm

Cross head speed: 100mm/min

Load Accuracy : Less than 1% of measured value

Displacement Accuracy : less than 1% of measured value

Application:  UniversalTesting Machine it can perform all the tests right from compression, bending totension and examine the material in all mechanical properties.

Accuracy & Calibration:   Machine is the calibrated over each of the measuring ranges in accordance with the procedure laod down in british stsndards 1610:1964 and IS: 1828 - 1975. Universal testimg machine comply with grads "A" of BS: 1610-1964 and grade 1.0 of IS:1828 -1975 an accuracy of 1% is guaranteed from 205 of the load range selected to full load bellow 20% of the selected range the maximum permissoble errpr is 0.2% of the full reading.

Machine consists of : Straining Unit ,Control panel power, HydraulicControls, Load indictor System, Automatic Continuous Roll load- Elongationrecorder

Software Features:

Test can conduct:

Tensile test

Compression test bend Test

Single Shear

Double Shear

Proof test (Stress Vs 5 strain(if Extensometer is used)

Vs Displacement

Specimen types:

Round

Flat hollow

Tor/ TMT steel

Some date Entry points :

Pre- load Date Entry to avoidslippage in graph

Fully customized data entry

Extensometer Gauge lengthSelection-10, 25,50 mm

Lower force data entry in %of maximum load to calculate proof stress

Units:

Load :KN, kG, N

Tress: KNmm2, Nmm2 (Map),Kgmm2

Displacement : mm

Before start test you willget all information entered regarding test.

Fully customized header& footer information for test report.

Facilities to search : ultimate Load Maximum Displacment %, Elongation%, Reduction in area, Brealing Load, breaking stress, Yield load, yield Strenght, 0.02% proof strenght 0.5% proof , Strenght 1% proof , stremght all proof loads, Youngs modulus
